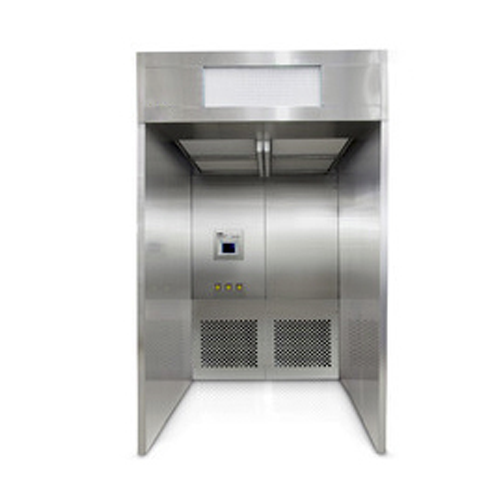

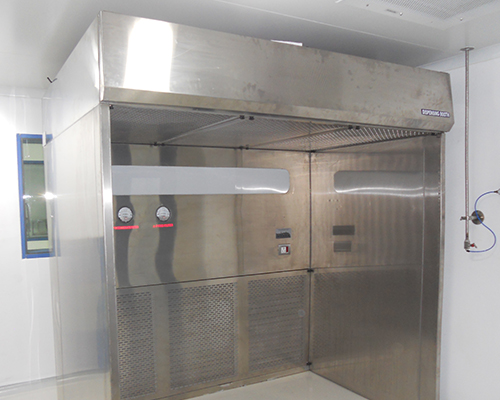

SAMPLING/ DISPENSING BOOTH

SAMPLING/ DISPENSING BOOTH (REVERSE LAMINAR AIR FLOW):

Reverse Laminar Airflow Bench finds a major application in sampling and dispensing. Majorly used for mixed airflow stream to control the hazardous emission of dust pow-der during dispensing or sampling process.
Dust air particles are being filtered and clean air stream is provided in the zone of ex-posed product and the operator breathing zone. The RLAF is designed to provide Class 100 working environment at rest with built in scavenging system to ensure product, operator as well as surrounding environment protection.

SS 304 / CRCA powder coated construction except Filters and motor-blower as-semblies which will be in standard execution.
Minipleat HEPA Filter with hot melt technology, which conforms to EU 14 Grade, with an efficiency rating better than 99.999% for 0.3 µ at exhaust position.
Prefilter, which conforms to EU 4 Grade, with efficiency of 90% down to 10 micron. These Filters are basically made from micro-Fibre-glass washable media.
Intermediate filters which conform to EU 7 Grade, with efficiency of 95% down to 3 micron. These Filters are basically made from micro-Fibre-glass media and are in-herently washable.
Motor Blower provided are statically and dynamically balanced to supply air flow with sufficient capacity and static pressure for entire life of HEPA. Blower is high performance, noise abated and light weighted.
Magnehelic Differential Pressure Gauges (0 - 25 mm) to monitor pressure drop across intermediate filter & HEPA filter; and (0-10mm) to monitor pressure drop across Prefilter with respect to ambient.
SS 304 Double Walled Side Panels.
Fluorescent Light
ON/OFF Switches for motor & lights
Electrical control panel mounted on the side panel of the unit.
5/15 Amp single-phase switch socket for external equipment.
PAO Test port at upstream of HEPA filter to personnel for carrying out the HEPA Filter Integrity Test.
