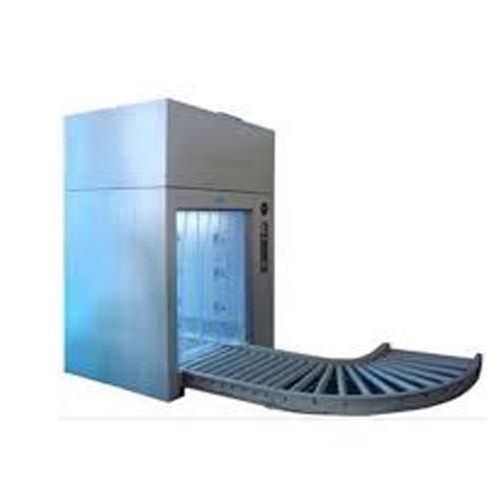

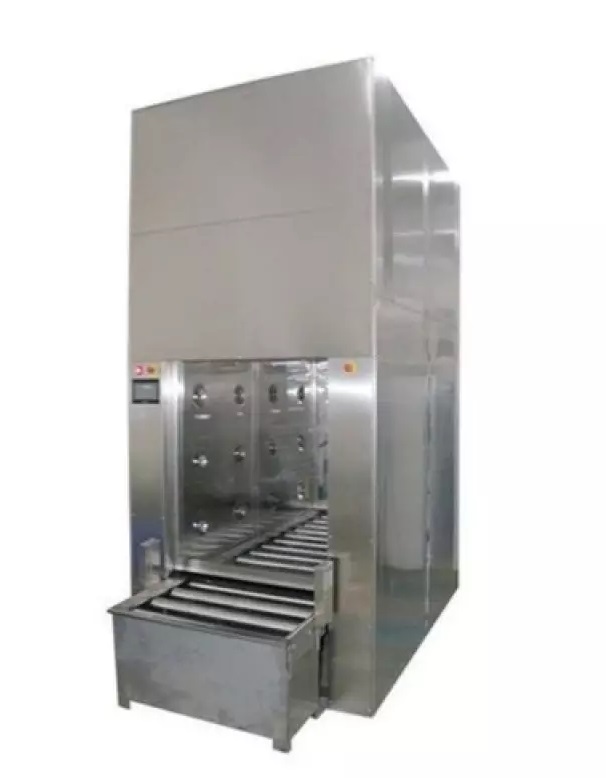

DE –DUSTING BOOTH (WITH BRUSHING/ WITHOUT BRUSHING)
- The De-Dusting Booth system is used to remove the loose particles/dust present on the receiving materials, which will be brought into the warehousing area before they are transferred into the quarantine area.
TECHNICAL SPECIFICATION
- MOC (SS304 / CRCA Powder coated / double wall PUFF filled panel)
- Conveyor for materials transfer (SS 304 roller / MS coated roller / PVC/Mesh)
- High velocity HEPA FILTER Jet system with manual adjustable direction control
- Dust extract system HEPA protected at discharge ensuring no air escape from the system
- Control system (PLC / Manual) with differential pressure gauges
- Removable dust collection tray on wheel.
- LED concealed light providing light intensity in excess of 400 Lux
- 2 stage filtration at supply and exhaust.
- Blower Assembly: Dynamically and statically balanced high static centrifugal blower
- Made out of SS 304 fixed type or adjustable flush type being fixed on either side of walls and ceiling
- Drive unit : multiple industrial chains controlled with in-built motor of varied speeds
- SS/PVC roller option. Vertical brushing system also available
Applications
- Pharmaceuticals
- Chemical
- Medical
- Food Manufacturing
- Food Industry
- Forensics
- Microbiology and Tissue Culture Lab
- Entomology
- Veterinary and Seed Sciences
- Pathology
